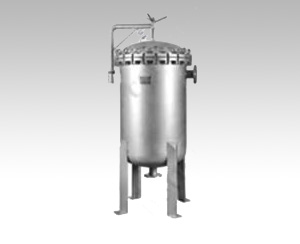

LBFH Series Bag Filter housing
- LBFH Series Bag Filter housing Special designed to match with Leadtop LBF series Bag filters. It can design single or Multi-bags to meet different flow rate.
-
Product Details
-
Order Information
Specifications
| Materials of Construction | |
| Housing | S304/316L |
| Clamp/Swing bolt | S304 |
| Basket | S304/316L |
| Housing Seal Matrial | Silicone/EPDM/Viton |
| Polishing | Liquid contact surface Ra﹤0.8um |
| Basket Ra﹤0.4um | |
| Connection | |
| Housing body | eyebolt |
| Inlet/Outlet | Tri Clamp/Flange/NPT |
| Pressure Gauge | 1/4 internal thread |
| Operating conditions | |
| Max Operating pressure | 6 bar (or designed as demand |
| Max Operating temperature | 150℃ |
Order Information
|
LBFH |
Housing Material |
Bag Qty |
Bag size |
Inlet/Outlet connection |
Design Pressure |
Seal Materials |
|
A: S304 |
1:1bag |
1:1# |
T:Tri Clamp |
0.6:0.6Mpa |
S:Silicone |
|
|
B：316L |
3:3bags |
2:2# |
F:Flange |
1:1Mpa |
E:EPDM |
|
|
|
5:5bags |
3:3# |
N:NPT |
1.6:1.6Mpa |
V：Viton |
|
|
|
7:7bags |
4:4# |
|
|
|
|
|
|
9:9bags |
5:5# |
|
|
|
