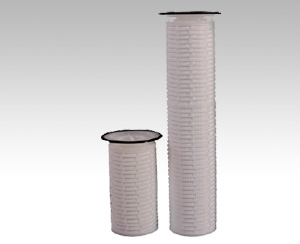

LBFC Series Bag Cartridge Filter
-
Leadtop LBFC Series Bag Cartridge Filter combine both the Cartridge filter’s high filtration efficiency advantage and bag filter easily handle advantage. It can replace the size 1 and size 2 Bag filter easily. Compared to bag filter, it has larger filtration area and filtration efficiency.
Application:
Food & Beverage, Lubricating Oil filtration.
-
Product Details
-
Order Information
Features:
Can replace Size 1 and Size 2 Bag Filter easily,higher filtration efficiency.
Gradient Pore structure guarantee High dirt holding capacity, long service life.
Specifications:
Dimension：
OD:152mm
Material of Construction:
Media:PP
Support layer:PP
End Caps:PP
Adjustable Flange:PP
Performance:
Max Operating Temperature:PP: 80℃
Max Pressure Drop:3.5 bar @21℃
Recommended Change out Pressure drop:2.5bar@21℃
Order Information EG:LBFC10A2E
| LBFC | Pore Size | Flange type | Length | Seal Materials |
| 0.5:0.5um | A:177mm (Side entry ) | 1:replace Size 1 Bag filter | S:Silicone | |
| 1:1um | B:183mm (Top entry) | 2:replace Size 2 Bag filter | E：EPDM | |
| 3:3um | N：Buna-N | |||
| 5:5um | ||||
| 10:10um | ||||
| 20:20um | ||||
| 40:40um | ||||
| 70:70um |
