Location：en > Product > Cartridge Filter > Pleated Cartridge Filter >
LPHF Series High Flow
-

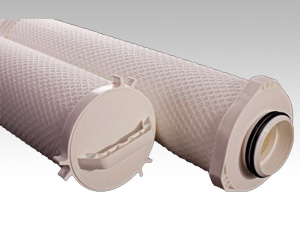

Leadtop LPHF Series High Flow Cartridge Filter has 6.7inch large diameter, single open-ended with an outside to inside flow pattern. It offers a high flow rate result in low investment and less manpower in many applications.
Application:
SWRO pre-filtration, Power Plant Condense Water, Boiler Water, Food&Beverage.
-
Product Details
-
Order Information
Features：
Large effective filtration area, high flow rate,low pressure drop.
Gradient aperture depth filtration guarantee Large dirt holding capacity,long service life.
Specifications:
Dimension：
Diameter:172mm
Length:40,60″
Material of Construction:
Media:PP
Support layer:PP
End Caps:PP
Performance:
Max Operating Temperature: PP:80℃
Max Pressure Drop:3.5 bar @21℃
Recommended Change out Pressure drop: 2.5bar@21℃
Max Flow rate: 40”:70T/H 60”:110T/H
Order Information EG:LPHFP540N
| LPHF | Filter Media | Pore Size | Length | Seal Materials |
| P: PP | 0.5:0.5um | 40:40” | S:Silicone | |
| G:GF | 1:1um | 60:60” | E:EPDM | |
| 3:3um | N:Buna-N | |||
| 5:5um | ||||
| 10:10um | ||||
| 20:20um | ||||
| 40:40um | ||||
| 70:70um |
