Location：en > Product > Cartridge Filter > Pleated Cartridge Filter >
LMHF Series High Flow
-

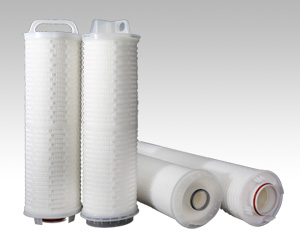

Leadtop LMHF Series high flow pleated filter cartridges are made from depth fine PP or GF non-woven fabrics. The filter has a big diameter of 6.5 inch/165mm. There is a core inside which suitable for the outside to inside flow pattern. The big diameter design makes the filter has big filtration area. The long service life and high flow rate result in low investment and less manpower in many applications.
Application:
SWRO pre-filtration,Power Plant Condense Water,Boiler Water,Food&Beverage.
-
Product Details
-
Order Information
Features：
Large effective filtration area, high flow rate, low pressure drop
Gradient aperture depth filtration guarantee Large dirt holding capacity, long service life,
Specifications:
Dimension：
Diameter:165mm
Length:20,40,60″
Material of Construction
Media:PP / GF
Support layer:PP / PE
End Caps:PP / GF reinforced PP
Performance:
Max Operating Temperature:PP:80℃ / GF:121℃
Max Pressure Drop:3.5 bar @21℃
Recommended Change out Pressure drop:2.5bar@21℃
Max Flow rate:40":70T/H 60":110T/H
Order Information EG:LMHFP5A40N
| LMHF | Filter Media | Pore Size | End Cap | Length | Seal Materials |
| P: PP | 0.5:0.5um | A: “一” Type | 20:20” | S:Silicone | |
| G:GF | 1:1um | B:”十” Type | 40:40” | E:EPDM | |
| 3:3um | 60:60” | N:Buna-N | |||
| 5:5um | V:Viton | ||||
| 10:10um | |||||
| 20:20um | |||||
| 40:40um | |||||
| 70:70um |
