LPFL Series Hydrophilic PTFE
-

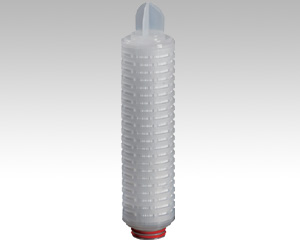

Leadtop LPFL Series Hydrophilic PTFE membrane Cartridge filter ----Stable hydrophilic performance, Wide chemical compatibility.
Leadtop LPFL Series Hydrophilic PTFE membrane Cartridge filter is made of high performance Hydrophilic PTFE membrane, which can use directly without wetting . It has wide chemical compatibility. Most suitable for solvents, corrosive liquid particle removal and sterile filtration.
Application：
Corrosive liquid / solvents particle removal and sterile filtration.
-
Product Details
-
Order Information
Material of Constructions：
Media:Hydrophilic PTFE membrane
Support Layer/Cage/Inner Core/End Cap:PP
Effective Filtration Area:0.7㎡/10”
Performance:
Max Operating Temperature: 90℃ (1 week)
Max Operating Pressure Drop:4bar@21℃， 2.4bar@80℃
Steam Sterilization (Autoclave):121℃/30Mins
Filtration Performance:
Grade Bacteria Challenge Level
0.22um ≥ 107CFU/cm2,,ATCC 19146
0.45um ≥ 107CFU/cm2,ATCC 14756
Biology Safety:
Extractables:﹤30mg/10”
Endotoxin:﹤0.25EU/ml
Order Information EG:LPFLBM10SP
| LPFL | Pore Size | End Cap | Length | Seal Materials | Inner Core |
| A:0.1um | D:Doe | 5:5” | S:Silicone | P:PP | |
| B:0.22um | C:222 Flat | 10:10” | E:EPDM | S:SS | |
| C:0.45um | E:222 Flat / SS Lining | 20:20” | N:Buna-N | ||
| D:0.1+0.1um | F:222 Fin | 30:30” | V:Viton | ||
| E:0.22+0.1um | H:222 Fin / SS Lining | T:PTFE | |||
| G:0.45+0.2um | J:226 Flat | F:Encapsulated PTFE | |||
| H:0.22+0.22um | K:226 Flat / SS Lining | ||||
| N:1um | M:226 Fin | ||||
| R:3um | P:226 Fin / SS Lining | ||||
| S:5um |
