LPS Series PES
-

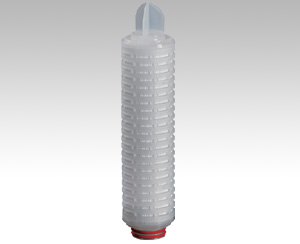

Leadtop LPS Series PES Cartridge Filter---- High precision, High flow rate, absolute Filtration.
Leadtop LPS Series PES Cartridge Filter is made of the Germany made Asymmetric PES membrane in Class 100,000 clean room. Each Filter is 100% integrity tested. The filter have very wide Chemical compatibility with PH endurance range 1-14.
Application：
LVP,SVP Sterile Filtration, Vaccine, Buffer Sterile Filtration, APIS Sterile Filtration.
-
Product Details
-
Order Information
Material of Constructions：
Media:PES
Support Layer/Cage/Inner Core/End Cap:PP
Effective Filtration Area:0.65㎡/10”
Performance:
Max Operating Temperature:90℃ (1 week)
Max Operating Pressure Drop:4bar@21℃， 2.4bar@80℃
Steam Sterilization (Autoclave):121℃/30Mins
Filtration Performance:
Grade Microorganism Challenge level
0.1um ≥ 107CFU/cm2,Acholeplasma Laidlawii
0.22um ≥ 107CFU/cm2,ATCC 19146
0.45um ≥ 107CFU/cm2,ATCC 14756
Biology Safety
Extractables: ﹤30mg/10”
Endotoxin: ﹤0.25EU/ml
Order Information：EG: LPS0.22P10EP
| LPS | Pore Size | End Caps | Length | Seal Material | Core |
| 0.1:0.1um | D:DOE | 5:5” | S:Silicone | P: PP Core | |
| 0.22:0.22um | C:222 Flat | 10:10” | E:EPDM | S: SS Core | |
| 0.45:0.45um | E:222Flat/SS Lining | 20:20” | N:Buna-N | ||
| 0.65:0.65um | F:222 Fin | 30:30” | V:Viton | ||
| 0.8:0.8um | H:222Fin/SS Lining | 40:40” | T:PTFE | ||
| 1.2:1.2um | J:226 Flat | F;Encapsulated PTFE | |||
| K:226 Flat/ SS Lining | |||||
| M:226 Fin | |||||
| P:226 Fin/SS Lining |
