LPPSG Series Pleated PP
-

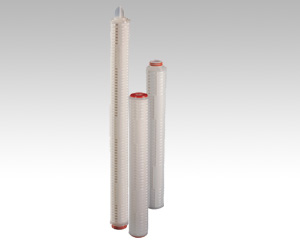

Leadtop LPPSG Series Pleated PP Cartridge Filter-----Single Piece without connection.
LPPSG Series Pleated PP Cartridge Filter use single piece inner core and outer cage without connection. Which guarantee its low initial DP and high flow rate. It also offers larger filtration area, stable length and low risk leakage.
Application:
Food & Beverage, Process water pre-filtration and fine filtration, RO pre-filtration.
-
Product Details
-
Order Information
Features：
High performance submicro PP filter media
Single piece structure offer larger filtration area, low leakage risk
Low initial pressure drop, high flow rate
Product Specification：
Dimension：
OD：69mm
Length：,10,20,30,40,″
Material of Constructions:
Media: PP
Support Layer: PP
Cage/Endcaps: PP / PP (with SS Lining)
Core: PP / SS
Extractables: ﹤30mg/10”
Endotoxin: ﹤0.25EU/ml
Performance:
Max Operating temperature：80℃,
Max Differential Pressure：4 bar,21℃
2.4bar,80℃
Order Information EG:LPPSG1F30SP
|
LPPSG |
Pore Size |
End Caps |
Length |
Seal Material |
Core |
|
0.1:0.1um |
D:DOE |
5:5” |
S:Silicone |
P: PP Core |
|
|
0.22:0.22um |
C:222 Flat |
10:10” |
E:EPDM |
S: SS Core |
|
|
0.45:0.45um |
E:222Flat/SS Lining |
20:20” |
N:Buna-N |
|
|
|
1:1um |
F:222 Fin |
30:30” |
V:Viton |
|
|
|
3:3um |
H:222Fin/SS Lining |
40:40” |
T:PTFE |
|
|
|
5:5um |
J:226 Flat |
|
F;Encapsulated PTFE |
|
|
|
10:10um |
K:226 Flat/ SS Lining |
|
|
|
|
|
25:25um |
M:226 Fin |
|
|
|
|
|
50:50um |
P:226 Fin/SS Lining |
|
|
|
