LDP Series PP melt blown
-
Leadtop LDP Series PP melt blown Cartridge filter bonded from Long and fine PP fibers by melt blown technology without any chemical and glue. The fibers are bonded randomly to form 3-D microporosity in 3 zones. It can remove contaminant effectively such as suspended particles、rust etc. it’s the economy choice for safe guard filtration. The PP particle raw material have NSF certificate.
Application：
RO Pre-filtration
-
Product Details
-
Order Information
Features
Depth Microporosity offer high dirt holding capacity, long service life.
100% PP ,Wide chemical compatability
Thermal bonded without any chemical glue
FDA、NSF certified PP material
Product Specification
Dimension：
OD：63mm, 115mm
ID：28mm, 30mm
Length：10, 20,30,40,50″
Material of Construction
Media : PP
End Caps : PP
Gasket / O-Rings: Silicone, EPDM, Buna-N, Viton.
Core: PP
Performance
Max Operating Temperature：65℃
Max Operating DP：2 bar@21℃
Order Information EG：LDPA540N

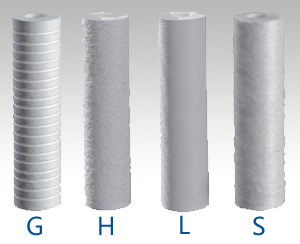

| LDP | Diameter | Pore Size | Length | End Cap | Gasket | Core | Surface |
| A：（ID：28mm，, OD：63mm） | 1:1um | 10:10″ | Blank: No End Caps | Blank：No Gasket | Blank：No Core | N: Plain | |
| B：（ID：30mm，, OD：63mm） | 3:3um | 20:20″ | D：DOE | S: Silicone | P：PP Core | L: Lined | |
| C：（ID：28mm，, OD：115mm） | 5:5um | 30:30″ | C:222 Flat | E: EPDM | G: Grooved | ||
| 10:10um | 40:40″ | F:222 Fin | N：Buna-N | H: Orange | |||
| 25:25um | 50:50″ | J:226 Flat | V: Viton | S: Hairy | |||
| 50:50um | M:226 Fin |
